H30N Mid-drive motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

?作電壓（V）: 60

額定功率（W）: 1500

峰值功率（W）: 3000

額定轉速: 2800

峰值扭矩（N.m）: ≥35

峰值效率（%）: ≥90%

防護等級（IP）: X7

絕緣等級: H

傳感器類型: 絕對值磁編碼器

Working voltage: 60

Rated power: 1500

Peak power: 3000

Rated speed: 2800

Peak torque: ≥35

Peak efficiency: ≥90%

Protection level: X7

Insulation level: H

Sensor type: Absolute value magnetic encoder

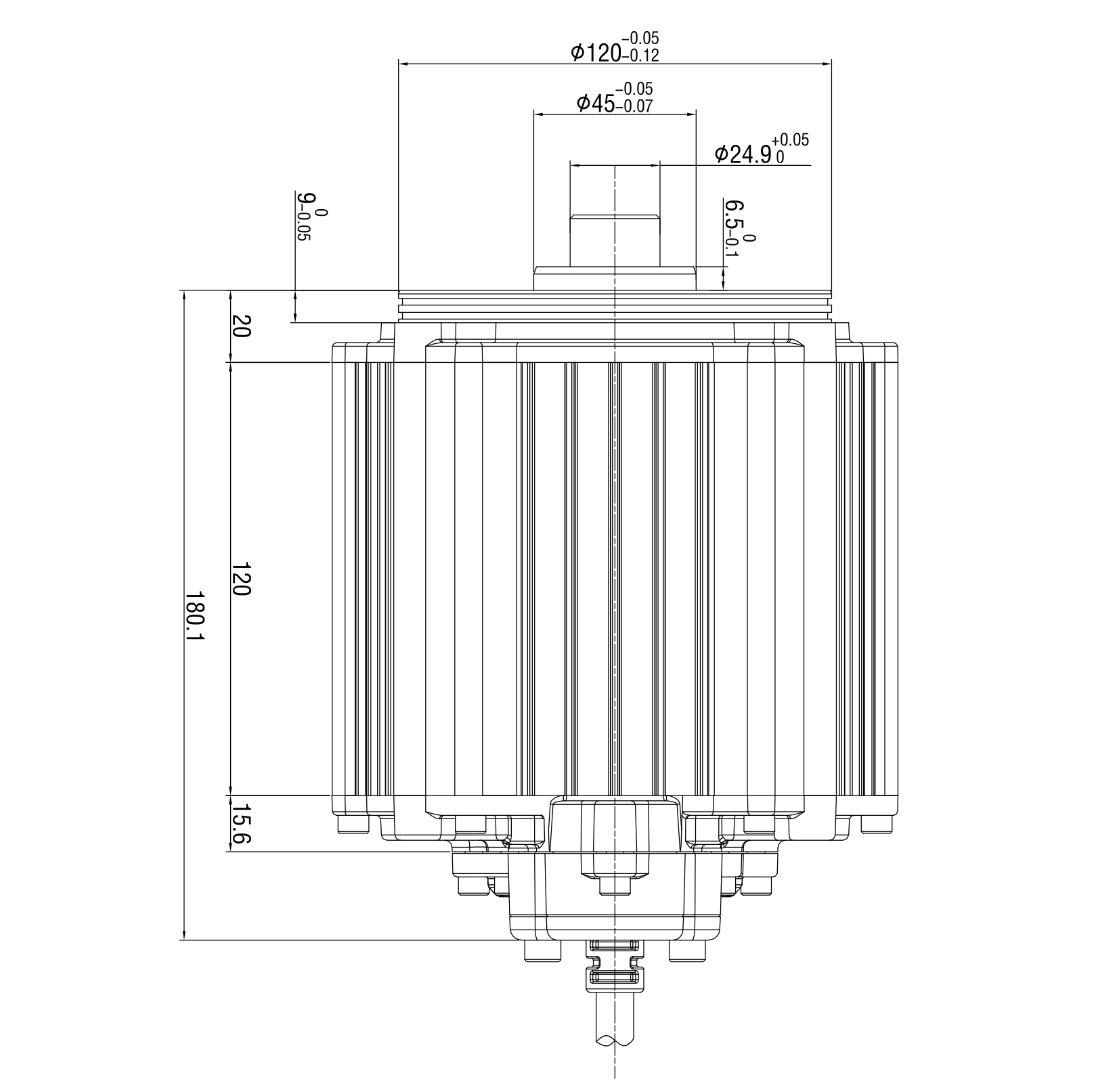

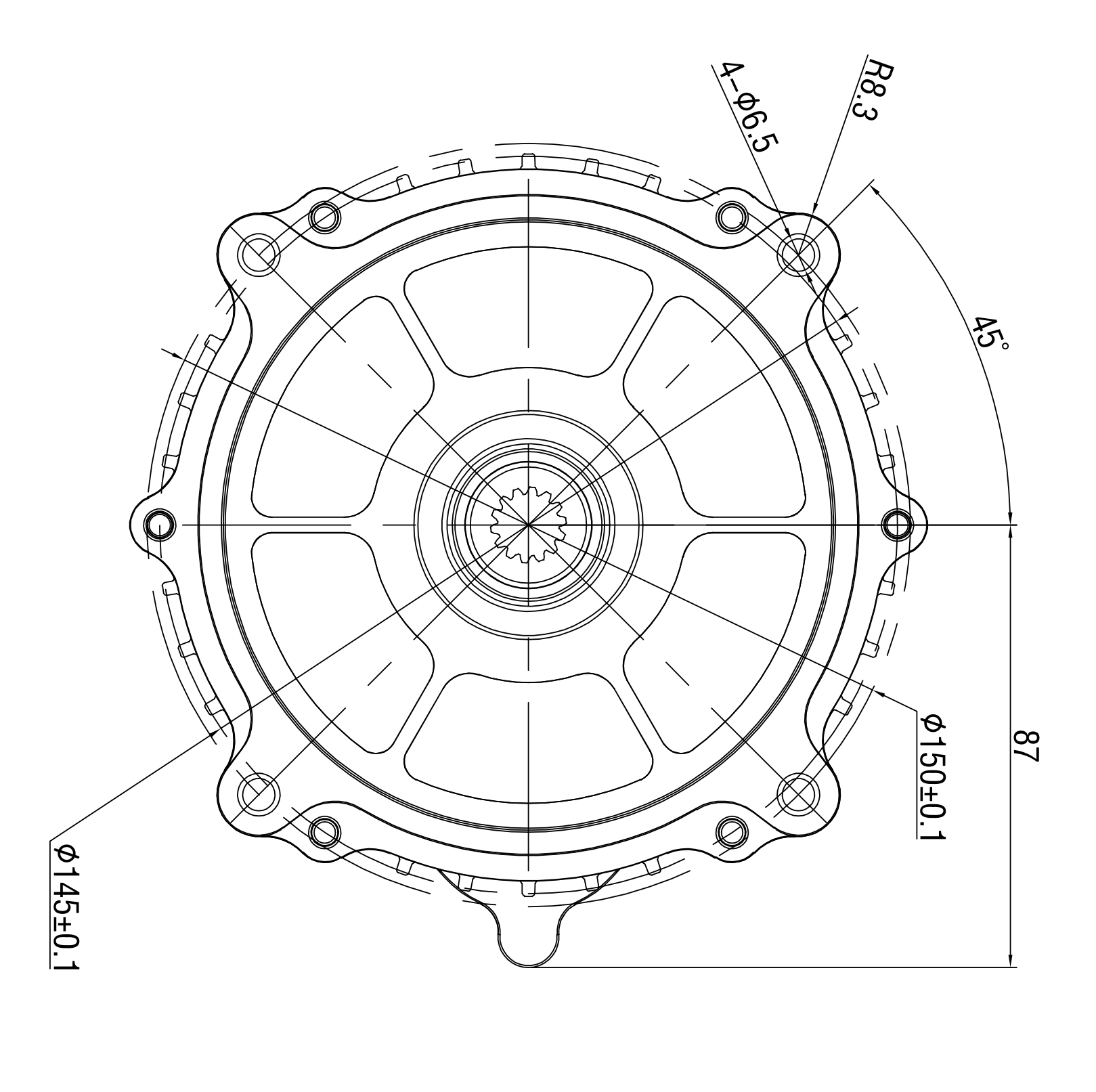

Product size:

安裝孔直徑: 4-M8

軸端外徑: ?17（-0.05，-0.1)

外花鍵參數: 6*?14*?17*4

軸端?端蓋?度: 31

輪廓最?外直徑: ?166

輪廓最??度: 139.5

吊?中?距離: 159.6

Installation hole diameter: 4-M8

Outer diameter of shaft end: ?17（-0.05，-0.1)

External spline parameters: 6*?14*?17*4

Height from shaft end to end cover: 31

Maximum outer diameter of contour: ?166

Maximum height of contour: 139.5

Distance between lifting eye centers: 159.6
