10"Pneumatic tyre quick disassembly motor-Jinyuxing

10"Pneumatic tyre quick disassembly motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

?作電壓（V）: 24-60

額定功率（W）: 350-500

峰值功率（W）: 700-1000

空載轉速（rpm）: 400-1000

額定轉速（rpm）: 500-800

峰值扭矩（N.m）: 18-30

峰值效率（%）: ≥80

防護等級（IP）: X7

絕緣等級: B

傳感器類型: 霍爾

制動器類型: 碟剎

最??駛速度（Km/h）: 40

Working voltage（V）: 24-60

Rated power（W）: 350-500

Peak power（W）: 700-1000

No-load speed（rpm）: 400-1000

Rated speed （rpm）: 500-800

Peak torque （N.m）: 18-30

Peak efficiency （%）: ≥80

Protection level（IP）: X7

Insulation level: B

Sensor type: Hall

Brake type: disc brake

Maximum running speed（Km/h）: 40

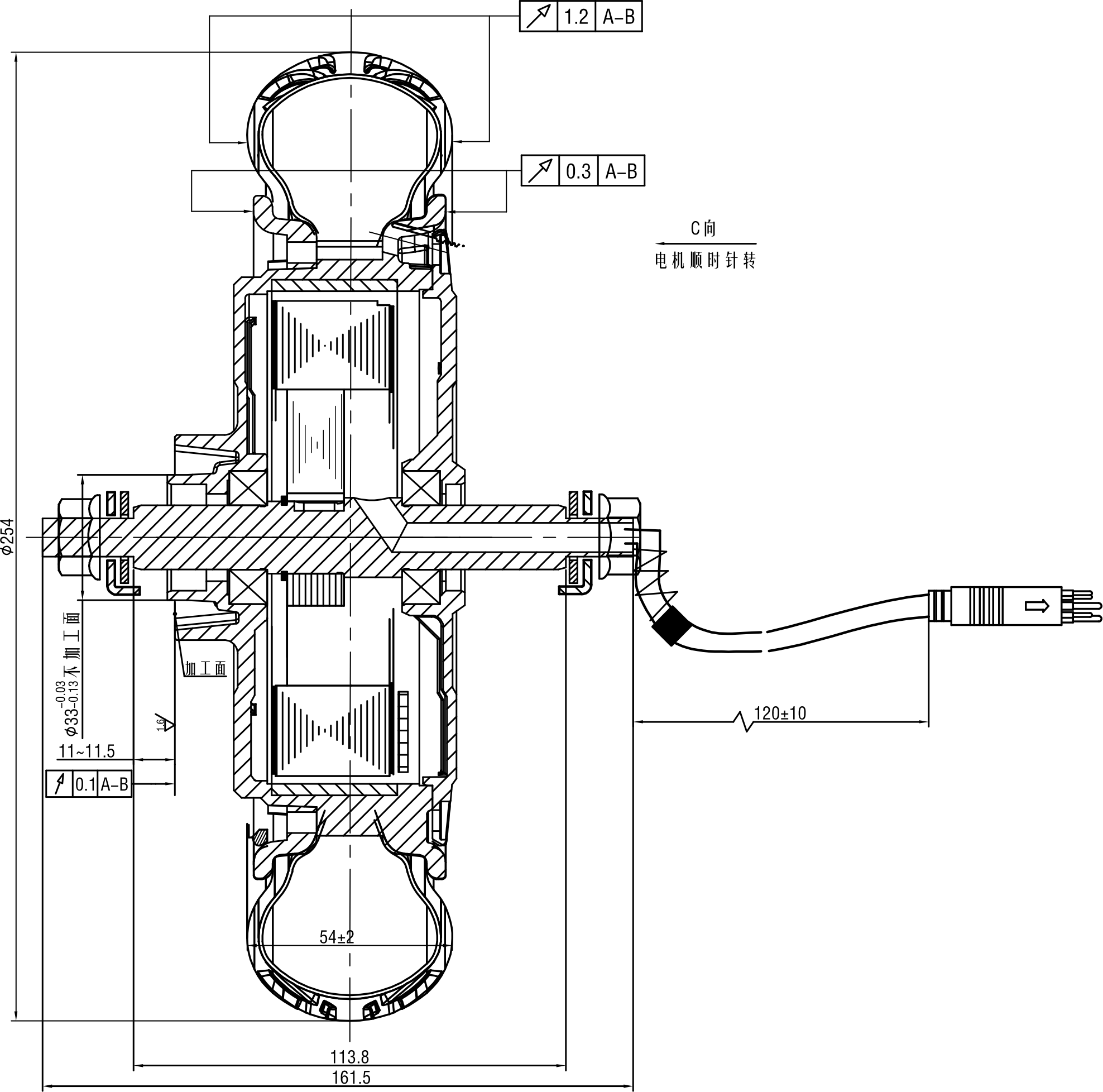

Product size:

輪輞寬度: 40.5

輪輞材質: 鋁合金

輪胎裝配位置尺?: 165.1

帶輪胎外徑: 254

電機軸軸?: 161.5

電機軸開檔: 113.8

電機軸出線?式: 直出線

扁?尺?: 10

電機軸螺紋尺?: M12

Rim width: 40.5

Rim material: Aluminium alloy

Mounting position size of tyre: 165.1

Outer diameter of tyre included: 254

Motor shaft length: 161.5

Motor shaft drop out size: 113.8

Motor shaft outlet mode: Straight outlet

Shaft flat size: 10

Motor shaft thread size: M12
