12＂Single-side four-wheeler motor-Jinyuxing

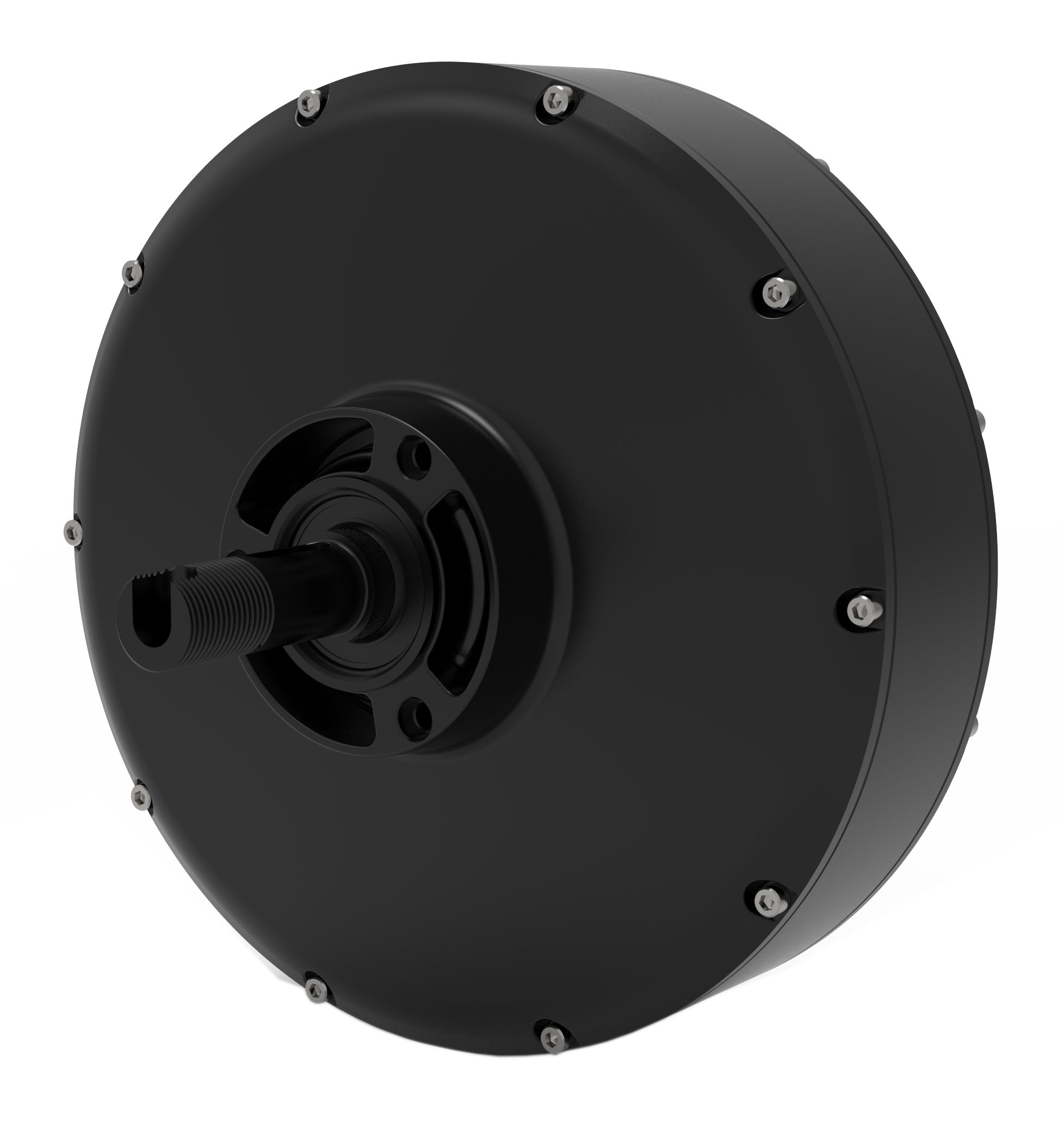

12＂Single-side four-wheeler motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）: 60-96

額定功率（W）: 1000-5000

峰值功率（W）: 3000-8000

空載轉速（rpm）: 650-1100

額定轉速（rpm）: 600-1000

峰值扭矩（N.m）: 100-240

峰值效率（%）: 85-90

防護等級（IP）: 67

絕緣等級: B

傳感器類型: 霍爾

制動器類型: 碟剎

最高行駛速度: 60-85

Working voltage（V）: 60-96

Rated power （W）: 1000-5000

Peak power（W）: 3000-8000

No-load speed （rpm）: 650-1100

Rated speed（rpm）: 600-1000

Peak torque （N.m）: 100-240

Peak efficiency （%）: 85-90

Protection level （IP）: 67

Insulation level: B

Sensor type: Hall

Brake type: Disc brake

Maximum running speed （Km/h）: 60-85

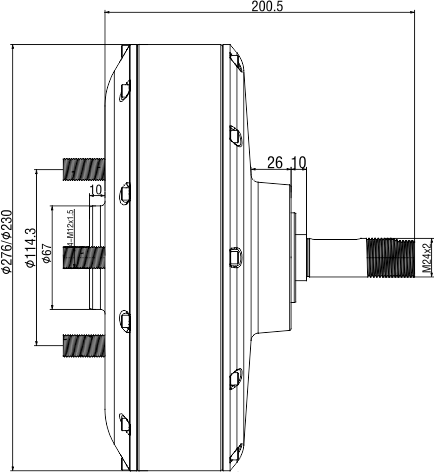

Product size:

輪輞寬度:

輪輞材質: 鋁

輪胎裝置位置尺寸:

帶輪胎外徑:

電機軸軸長: 200.5

電機軸開檔:

電機軸出線方式: 直出線

扁方尺寸:

電機軸螺紋尺寸: M24

Rim width:

Rim material: Aluminium

Mountiing position size of tyre:

Outer diameter of tyre included:

Motor shaft length: 200.5

Motor shaft drop out size:

Motor shaft outlet mode: Straight outlet

Shaft flat size:

Motor shaft thread size: M24
